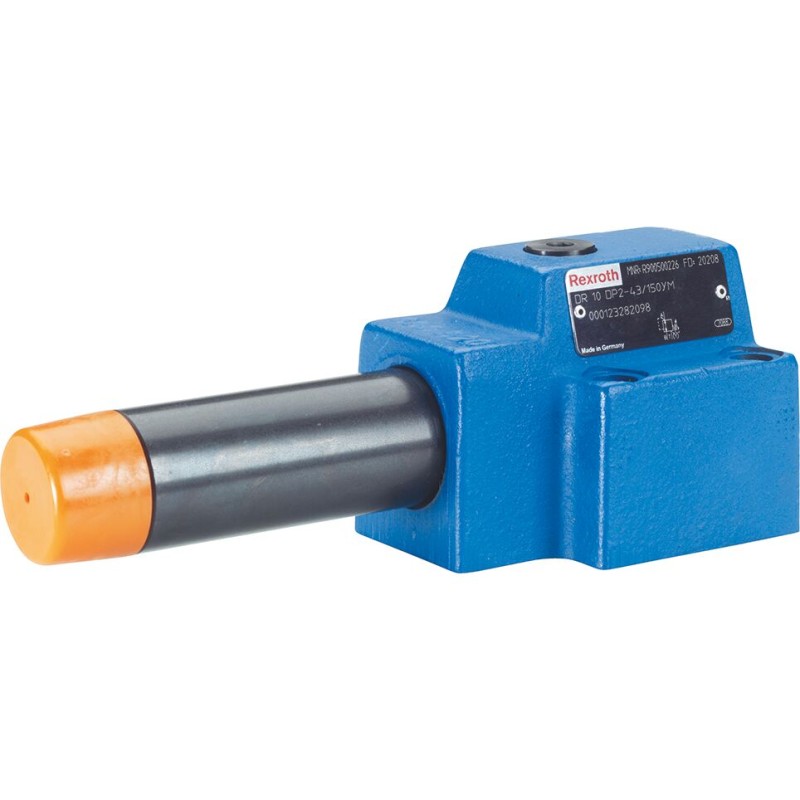

Bosch Rexroth DR10DP2-4X/75YM direct-operated pressure-reducing valve

DR10DP2-4X/75YM is a direct-operated pressure-reducing valve for regulating secondary pressure in a hydraulic branch. This subplate-mounted size 10 execution has external pilot-oil return, no integral check valve, NBR seals and internal hexagon with protective cap adjustment. The 75 bar pressure stage is an adjustment ceiling rather than a declared factory preset. The technical drawing identifies B as the inlet and T(Y) as the external return.

The published pressure and flow limits are ceilings, not an assurance that both may be reached simultaneously. Selection and installation must follow the applicable performance curves, hydraulic-fluid restrictions, mounting requirements and seal-specific operating conditions.
