Bosch Rexroth AZPF-11-005RCB20MB gear pump, 5 cm³/rev
Click image to enlarge
External gear pump

Bosch Rexroth AZPF-11-005RCB20MB gear pump, 5 cm³/rev
Model: AZPF-11-005RCB20MB · Bosch Rexroth
Displacement (cm³/rev)5
Maximum intermittent pressure (bar)280
Maximum rotational speed (rpm)4000
Drive shaftConical 1:5
Full specifications ↓ Technical catalog · PDF

Description

The Bosch Rexroth AZPF-11-005RCB20MB is an external gear pump with a displacement of 5 cm³/rev. Factory material number: 9510080302. It supplies hydraulic fluid flow from a rotating drive.

This execution has clockwise rotation and a conical 1:5 drive shaft. Its maximum intermittent pressure is 280 bar and maximum rotational speed is 4000 rpm. The pressure value is an intermittent rating.

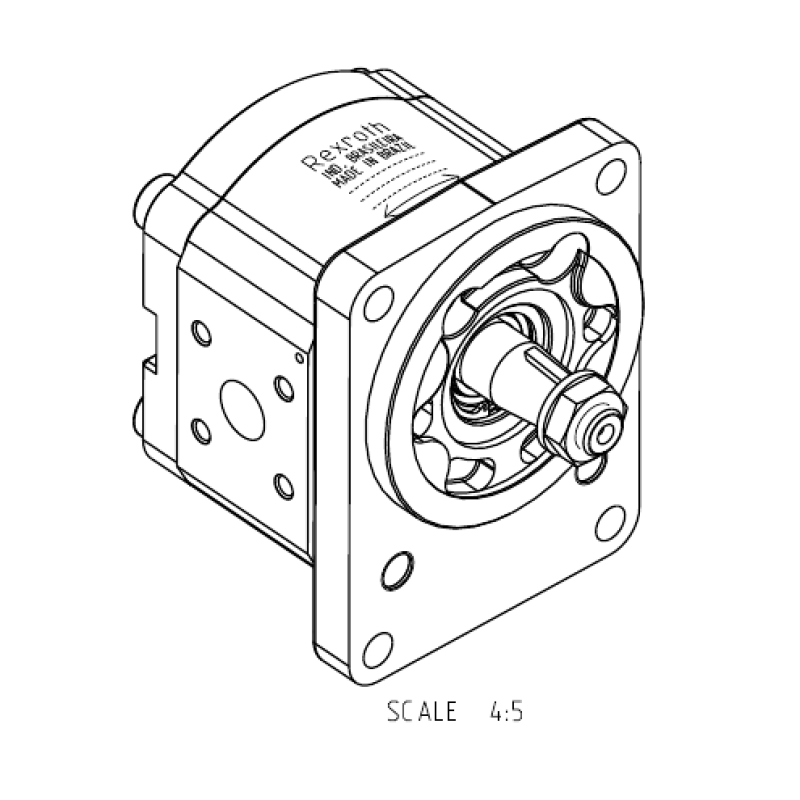

The representative series drawing shows the clockwise arrangement. Counterclockwise versions have the suction and pressure ports on opposite sides.

Full specifications

Technical specifications
Component type External gear pump
Maximum intermittent pressure (bar) 280
Displacement (cm³/rev) 5
Maximum rotational speed (rpm) 4000
Manufacturer Bosch Rexroth
Manufacturer part number 9510080302
Dimension A (mm) 41.1
Dimension B (mm) 85.5
Technical specifications
Rotation Clockwise
Drive shaft Conical 1:5
