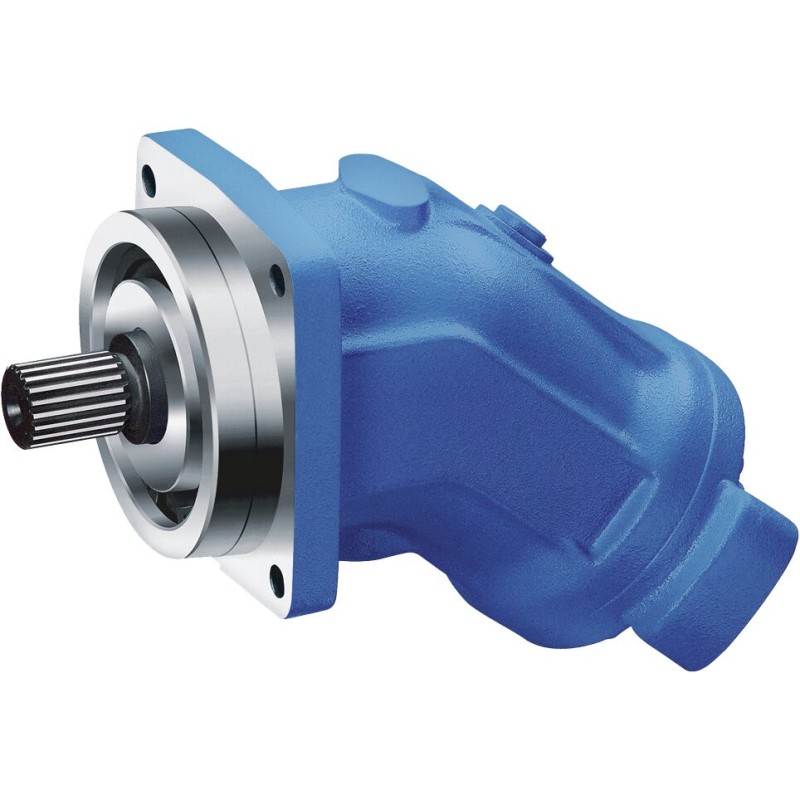

Bosch Rexroth A2FM200/63W-VAB010 *GO2EU* axial piston motor
Click image to enlarge
Axial piston fixed motor

Bosch Rexroth A2FM200/63W-VAB010 *GO2EU* axial piston motor
Model: A2FM200/63W-VAB010 *GO2EU* · Bosch Rexroth
Integrated pressure relief valvewithout
Nominal displacement (cm³/rev)200
Catalog working port arrangement01 (port A, B;SAE rear)
Seal materialFKM
Direction of rotationalternating
Drive shaft bearingStandard bearing
Full specifications ↓ Technical catalog · PDF

Description

The Bosch Rexroth A2FM200/63W-VAB010 *GO2EU* is a fixed-displacement A2FM axial piston motor with a bent-axis rotary group, for open and closed hydraulic circuits. Factory article R902230020 has 200 cm³/rev nominal displacement.

This execution has alternating rotation, FKM seals, a DIN 5480 splined shaft, a four-hole ISO 3019-2 flange and rear SAE working ports. It has no integrated pressure-relief valve or speed sensor. The working-port flange size is distinct from the connection-bolt threads.

Full specifications

Technical specifications
Component type Axial piston fixed motor
Integrated pressure relief valve without
Nominal displacement (cm³/rev) 200
Direction of rotation alternating
Speed sensing without
Drive shaft bearing Standard bearing
Shaft type A (splined shaft DIN 5480)
Catalog working port arrangement 01 (port A, B;SAE rear)
Housing port arrangement Air bleed port R
Housing port status Air bleed port R plugged
Port plate A-Standard
Port plate installation Installation version 1 (standard)
Low temperature version no
Shaft seal ring Standard WDR
Catalog series 63
Manufacturer Bosch Rexroth
Manufacturer part number R902230020
Product family A2FM
Product mass (kg) 61
Technical specifications
Mounting flange 4-hole ISO 3019-2
Technical specifications
Seal material FKM
