Bosch Rexroth 4WMM6C5X/F manual directional valve

4WMM6C5X/F, manufacturer material number R900472158, is a Bosch Rexroth size 6 direct-operated directional spool valve with hand-lever actuation and spool symbol C. The F execution uses a detent without spring return, retaining the selected spool position until the lever is moved.

The 315 bar P/A/B rating and 160 bar T rating are separate limits. The 60 L/min catalog maximum is subject to the selected spool operating envelope; values for special fluids can be lower.

The mounting interface is a subplate pattern, not a threaded fluid fitting. Subplates and mounting screws are separately selected; the original pages show the applicable interfaces and installation requirements.

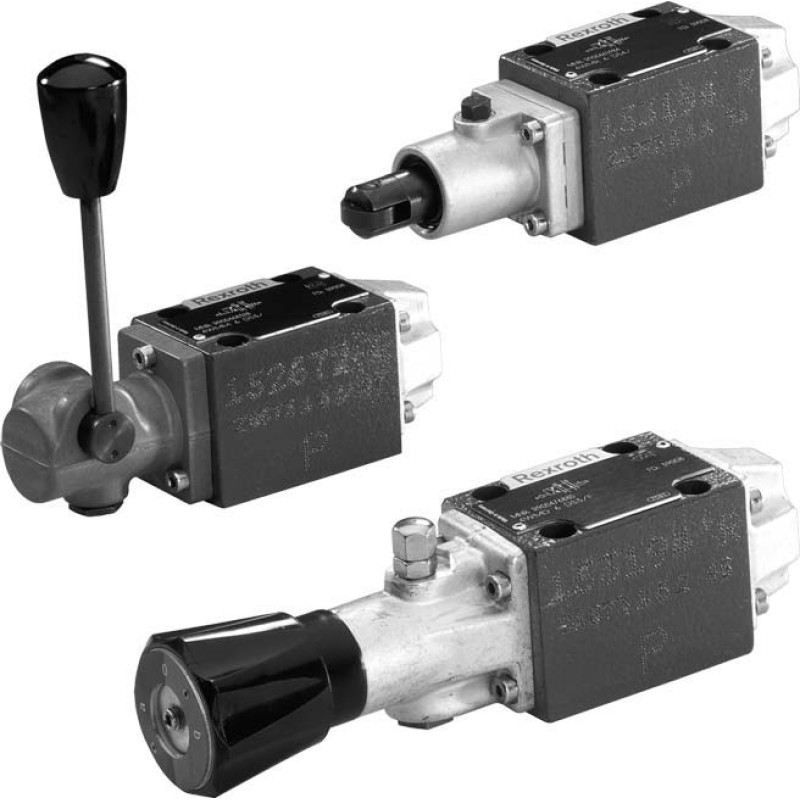

Representative manufacturer illustration of manual/mechanical actuation variants; only the WMM hand-lever configuration applies.
