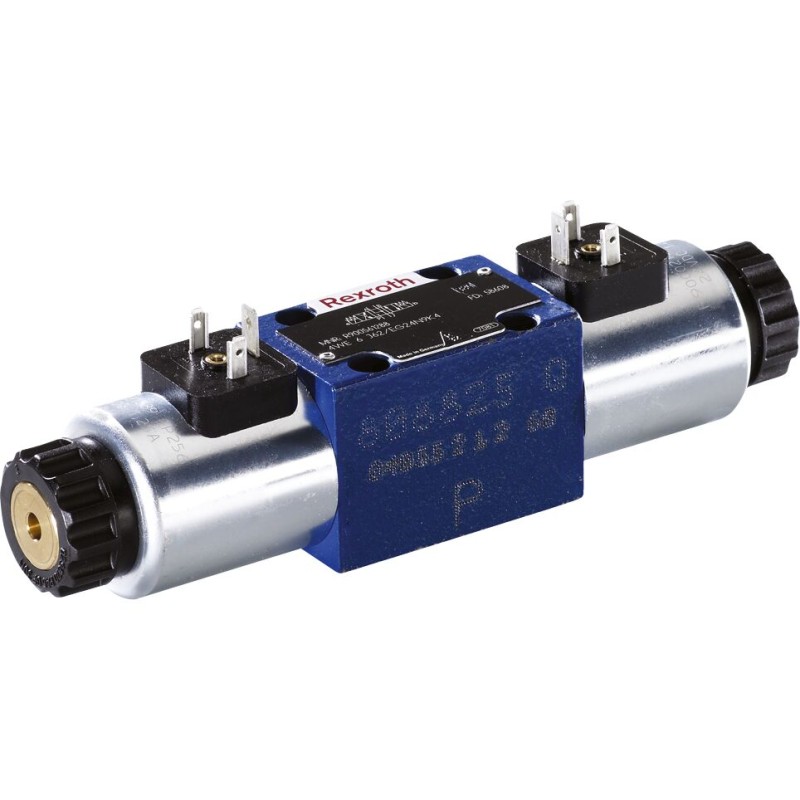

Bosch Rexroth 4WE6J6X/EG24NK4K solenoid-operated directional spool valve

4WE6J6X/EG24NK4K is a direct solenoid-operated directional spool valve, published as factory article R901050676. It has size 6, hydraulic symbol J, four main ports and 3 switching positions. This execution uses NBR seals, 24 VDC supply and connector, 3-pole (2 + pe) according to en 175301-803 with potted-in plug base and sealing element. Its return arrangement is spring centering, with manual override n manual override. The separate pressure ceilings are 350 bar at P, A and B and 210 bar at T.

Pressure and flow ratings are operating ceilings rather than a guaranteed simultaneous operating point. Observe the relevant fluid, cleanliness, seal, installation and characteristic-curve requirements when selecting the valve.

The current factory designation uses component-series notation6X. The commercial seller identifies the same material number with historical62 notation; the factory-listed designation is retained.
