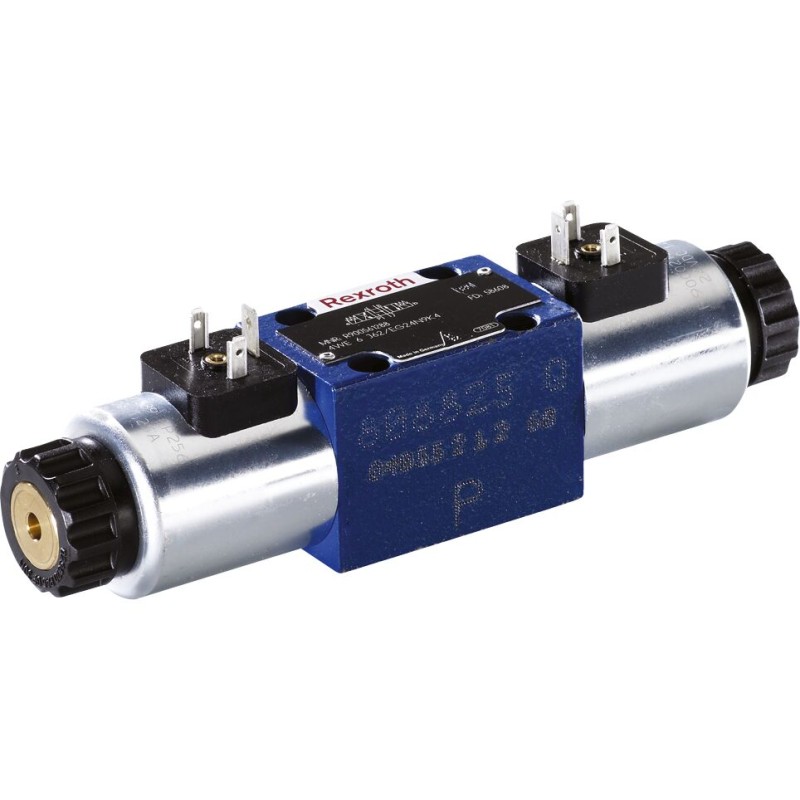

Bosch Rexroth 4WE6D6X/EG24N9C4 solenoid-operated directional spool valve

4WE6D6X/EG24N9C4, factory material number R901122855, is a size 6 direct solenoid-operated directional spool valve with symbol D, four main ports and two switching positions. It has spring return, concealed N9 manual override, NBR seals and 24 V DC coil supply. The factory-listed C4 electrical interface is a two-pole Junior-Timer connection, as distinct from the three-pole K4 interface. The applicable mating plug and cable are separate accessories and are not represented as included with the valve.

Use the applicable manufacturer installation, fluid-compatibility and characteristic-curve conditions. Operating ceilings and pressure adjustment stages serve different purposes and must not be treated as a single simultaneous operating point.

The exact factory article lists 70 L/min maximum flow; this ceiling is not an assurance of operation at 350 bar. Select the operating point from the applicable G24/D-spool operating envelope and installation conditions.
