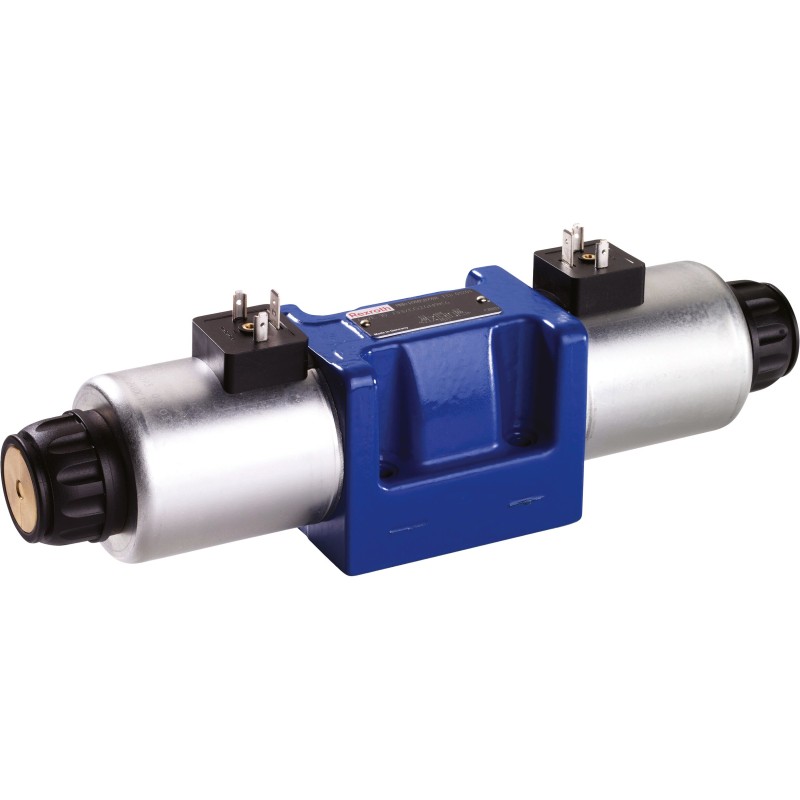

Bosch Rexroth 4WE10D5X/EG24N9K4/V solenoid-operated directional spool valve

4WE10D5X/EG24N9K4/V is a direct solenoid-operated directional spool valve, published as factory article R901278783. It has size 10, hydraulic symbol D, four main ports and 2 switching positions. This execution uses FKM seals, 24 VDC supply and connector, 3-pole (2 + pe) according to en 175301-803. Its return arrangement is spring return, with concealed n9 manual override. The separate pressure ceilings are 350 bar at P, A and B and 210 bar at T.

Pressure and flow ratings are operating ceilings rather than a guaranteed simultaneous operating point. Observe the relevant fluid, cleanliness, seal, installation and characteristic-curve requirements when selecting the valve.
