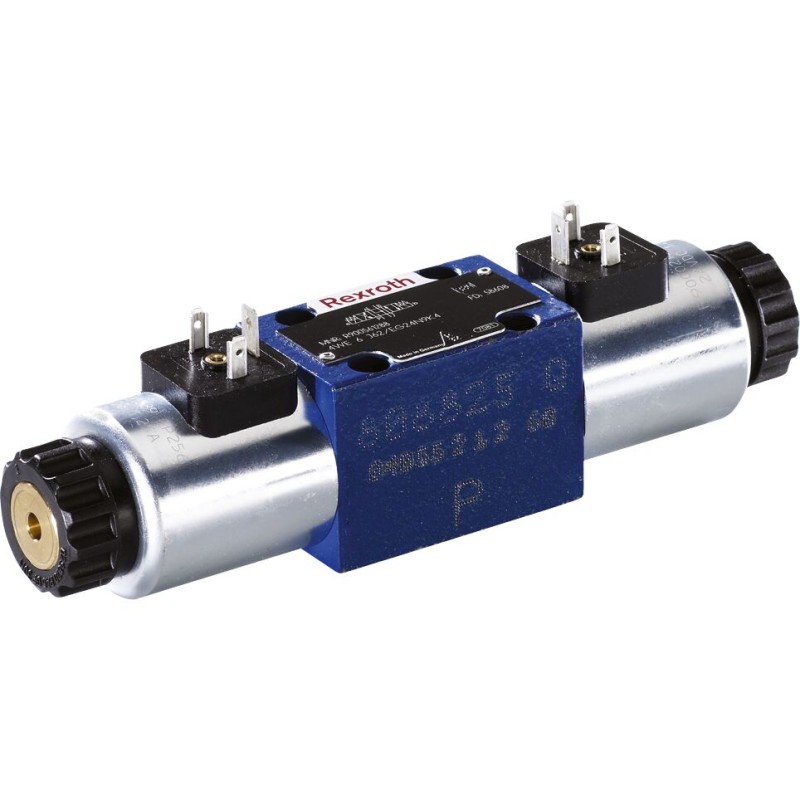

Bosch Rexroth 4WE 6 J6X/EW110N9K4/ZV solenoid-operated directional spool valve

4WE 6 J6X/EW110N9K4/ZV is a direct solenoid-operated directional spool valve, published as factory article R901145565. It has size 6, hydraulic symbol J, four main ports and 3 switching positions. This execution uses FKM seals, 110…120 VAC supply and connector, 3-pole (2 + pe) according to en 175301-803. Its return arrangement is spring centering, with concealed n9 manual override. The separate pressure ceilings are 350 bar at P, A and B and 160 bar at T.

Pressure and flow ratings are operating ceilings rather than a guaranteed simultaneous operating point. Observe the relevant fluid, cleanliness, seal, installation and characteristic-curve requirements when selecting the valve.

The W110 table lists 110 V AC at 50/60 Hz and 120 V AC at 60 Hz. A dedicated operating-envelope plot for this coil is not provided in the linked series sheet; confirm the intended pressure/flow operating point for this execution.
