Bosch Rexroth 2FRM6B76-3X/32QRV pressure-compensated flow control valve
Click image to enlarge
Pressure-compensated flow control valve

Bosch Rexroth 2FRM6B76-3X/32QRV pressure-compensated flow control valve
Model: 2FRM6B76-3X/32QRV · Bosch Rexroth
Pressure compensationYes
Flow behaviorRegulated A to B; free reverse B to A
Actuation typeMechanical rotary adjustment
Number of flow ports2
Mounting typeSubplate mounting
Seal materialFKM
Full specifications ↓ Technical catalog · PDF

Description

2FRM6B76-3X/32QRV, manufacturer material number R900205526, is a Bosch Rexroth size 6 mechanically adjusted, pressure-compensated two-way flow control valve. It regulates flow from A to B and provides free reverse flow from B to A through the documented check valve.

The selected 2025 manufacturer sheet lists a 350 bar series limit, while older executions were documented at 315 bar. This does not establish a pressure upgrade for this factory article; its delivered pressure rating requires nameplate and edition-applicability confirmation. The coded flow range is an adjustment range, not a delivery preset.

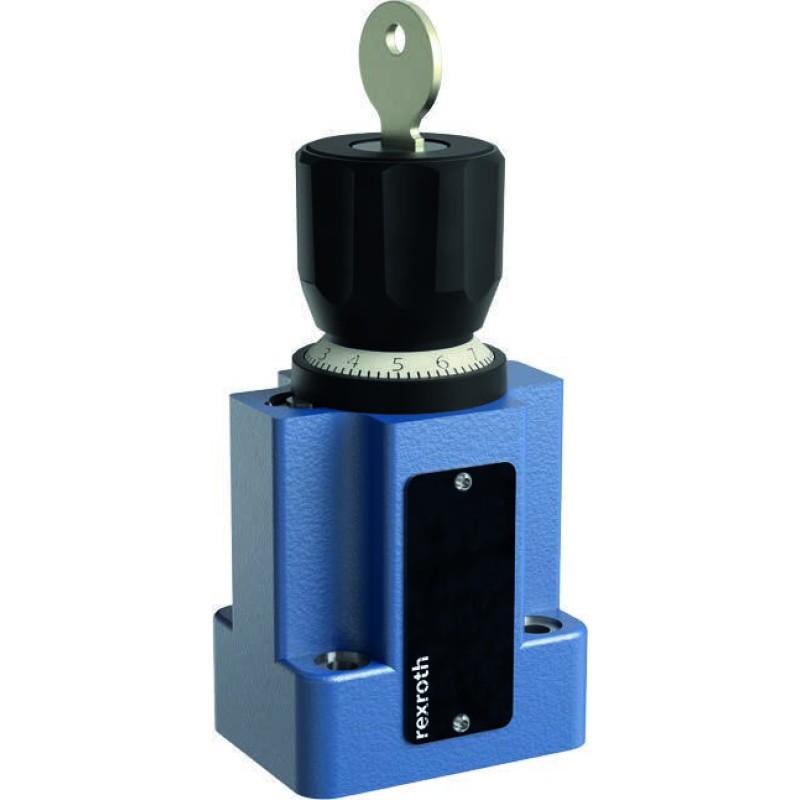

Representative manufacturer family photograph; the delivered size and execution may differ.

Full specifications

Technical specifications
Component type Pressure-compensated flow control valve
Pressure compensation Yes
Flow behavior Regulated A to B; free reverse B to A
Number of flow ports 2
Rated flow-range upper limit (l/min) 32
Reverse-flow check valve Included
Actuation type Mechanical rotary adjustment
Mounting type Subplate mounting
Series 3X
Adjustment method Rotary knob with scale
Catalog rating conditions The selected 2025 manufacturer sheet lists a 350 bar series limit, while older executions were documented at 315 bar. This does not establish a pressure upgrade for this factory article; its delivered pressure rating requires nameplate and edition-applicability confirmation. The coded flow range is an adjustment range, not a delivery preset.
Compensator location Downstream of metering orifice
Control code M
External compensator closing Without external closing
Factory model code 2FRM6B76-3X/32QRV
Manufacturer Bosch Rexroth
Manufacturer part number R900205526
Product family 2FRM
Nominal size 6
Technical specifications
Seal material FKM
