Bosch Rexroth 2FRM16-3X/160LB pressure-compensated flow control valve
Click image to enlarge
Pressure-compensated flow control valve

Bosch Rexroth 2FRM16-3X/160LB pressure-compensated flow control valve
Model: 2FRM16-3X/160LB · Bosch Rexroth
Maximum inlet pressure (bar)315
Flow behaviorRegulated A to B; free reverse B to A
Actuation typeMechanical rotary adjustment
Number of flow ports2
Mounting typeSubplate mounting
Seal materialNBR
Full specifications ↓ Technical catalog · PDF

Description

2FRM16-3X/160LB, manufacturer material number R900424902, is a Bosch Rexroth size 16 mechanically adjusted, pressure-compensated two-way flow control valve. It regulates flow from A to B and provides free reverse flow from B to A through the documented check valve. Its B option limits pressure-compensator stroke to reduce the start-up flow surge.

The manufacturer specifies a maximum inlet pressure of 315 bar at A. The coded flow range is adjustable and does not specify a factory-set flow. Required minimum pressure differential depends on nominal size and selected flow. Free reverse flow is through the integrated check valve; bidirectional regulated flow needs a separately selected rectifier plate.

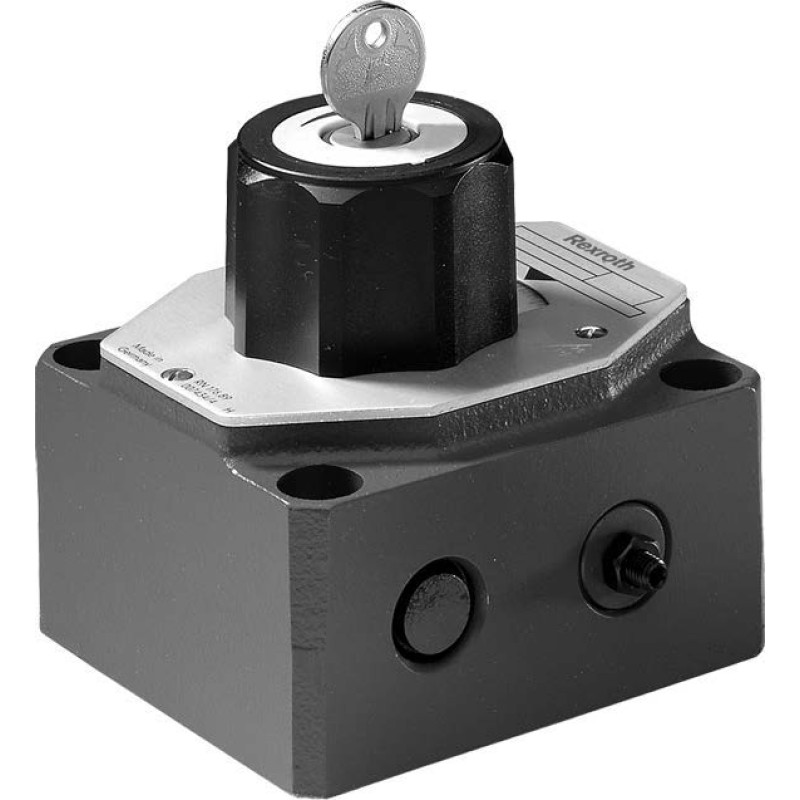

Representative manufacturer family photograph; the delivered size and execution may differ.

Full specifications

Technical specifications
Component type Pressure-compensated flow control valve
Maximum inlet pressure (bar) 315
Pressure compensation Yes
Flow behavior Regulated A to B; free reverse B to A
Number of flow ports 2
Rated flow-range upper limit (l/min) 160
Reverse-flow check valve Included
Actuation type Mechanical rotary adjustment
Mounting type Subplate mounting
Series 3X
Adjustment method Lockable rotary knob with scale
Catalog rating conditions The manufacturer specifies a maximum inlet pressure of 315 bar at A. The coded flow range is adjustable and does not specify a factory-set flow. Required minimum pressure differential depends on nominal size and selected flow. Free reverse flow is through the integrated check valve; bidirectional regulated flow needs a separately selected rectifier plate.
Compensator location Upstream of metering orifice
Compensator stroke limitation Included
Control code M
Factory model code 2FRM16-3X/160LB
Manufacturer Bosch Rexroth
Manufacturer part number R900424902
Product family 2FRM
Nominal size 16
Technical specifications
Seal material NBR
