Block 4 ways valve CVE404C

Technical overview

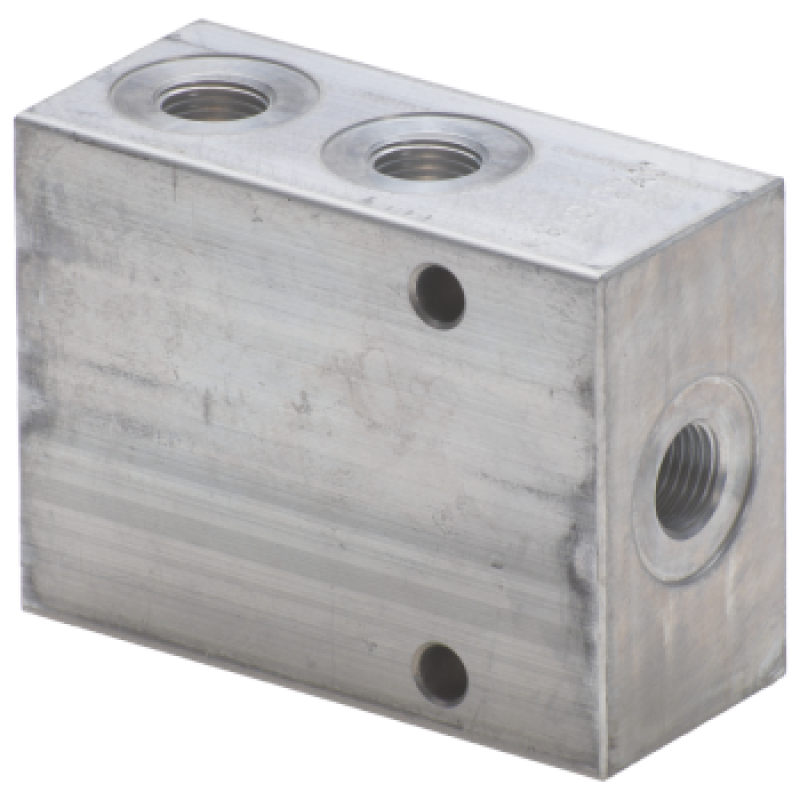

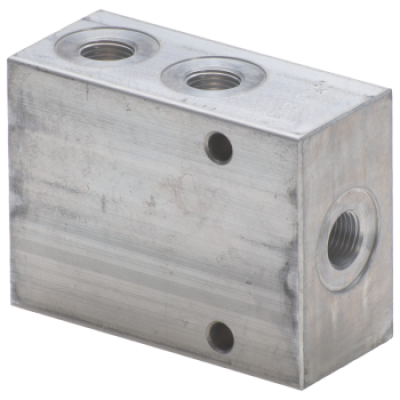

The CVE404C is a cartridge valve manifold block. The following specifications are matched to the exact model row in the official DICSA catalogue.

Verified catalogue specifications

Component type

Cartridge valve manifold block

Compatible valve code

VEFL08

Cartridge thread

3/4" UNF

Cartridge size

8

Technical documentation

Official technical documentation (PDF).

Source notes

• This is a manifold block, not a complete solenoid valve. The valve-thread field is distinct from the external hydraulic port thread.

Technical documentation publisher: DICSA.

Specifications retain their original catalog reference. The product-card technical sheet is provided for comparison.
