Block 3 ways CVE308F
Click image to enlarge

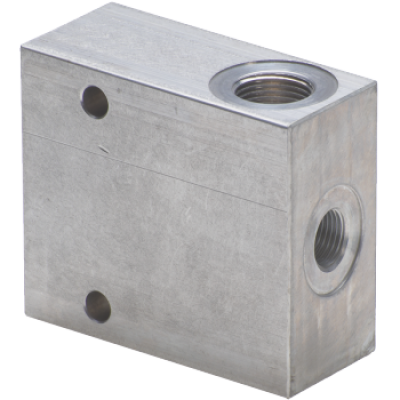

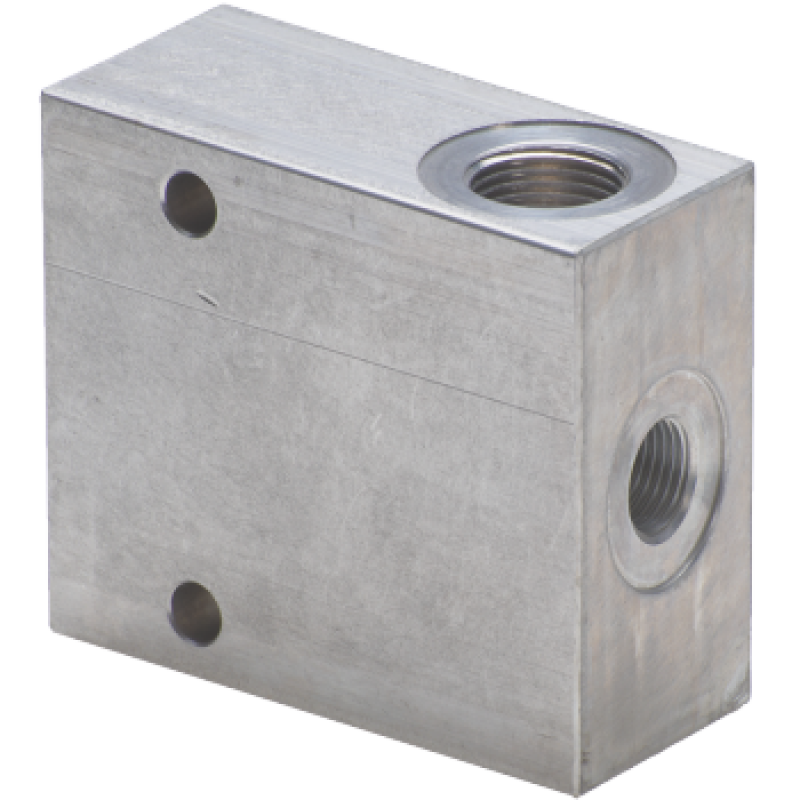

Cartridge valve manifold block

Block 3 ways CVE308F
Model: CVE308F
  • Model:
    CVE308F
Cartridge thread3/4-16UNF
Full specifications ↓ Technical catalog · PDF

Description

Technical overview

The CVE308F is a cartridge valve manifold block. The following specifications are matched to the exact model row in the official DICSA catalogue.

Verified catalogue specifications

Component type
Cartridge valve manifold block
Cartridge thread
3/4-16UNF
Port thread
3/8" BSP
Cartridge size
SAE 08

Technical documentation

Official technical documentation (PDF).

Source notes

  • This is a manifold block, not a complete solenoid valve. The valve-thread field is distinct from the external hydraulic port thread.

Technical documentation publisher: DICSA.

Specifications retain their original catalog reference. The product-card technical sheet is provided for comparison.

Full specifications

Technical specifications
Component type Cartridge valve manifold block
Cartridge thread 3/4-16UNF
Port thread 3/8" BSP
Cartridge size SAE 08

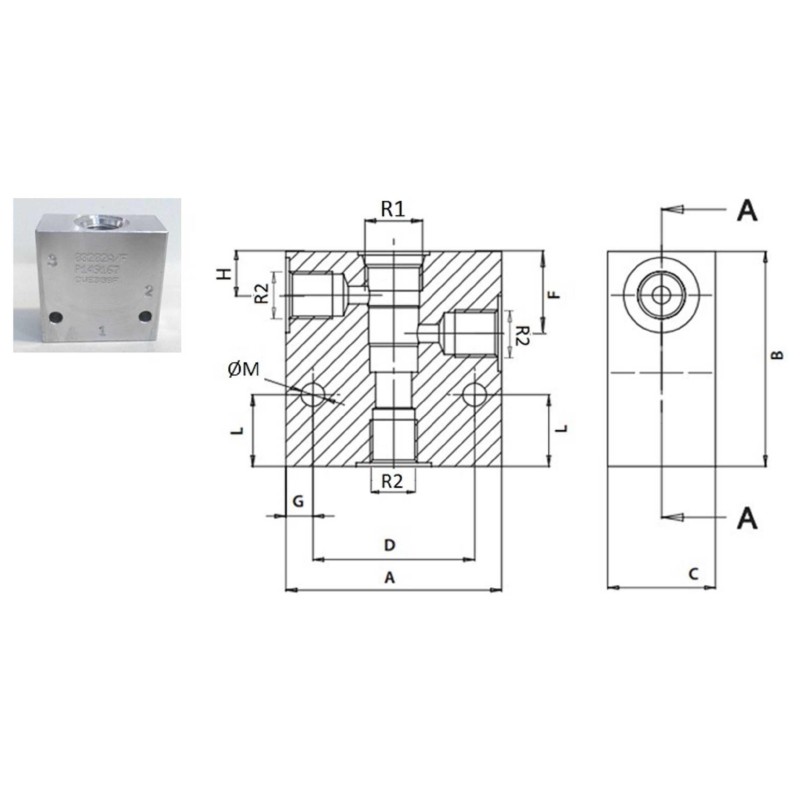

Original specifications — unverified
R2 3/8'' BSP
L 15
B 60
H 14
F 29
G 7,5
D 45
C 30
A 60
ØM 6,5
