Block 3 ways 3/8 valve CVE304C
Click image to enlarge

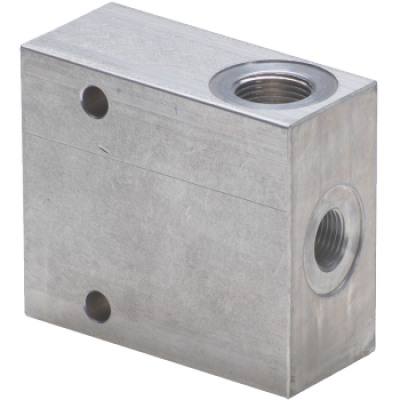

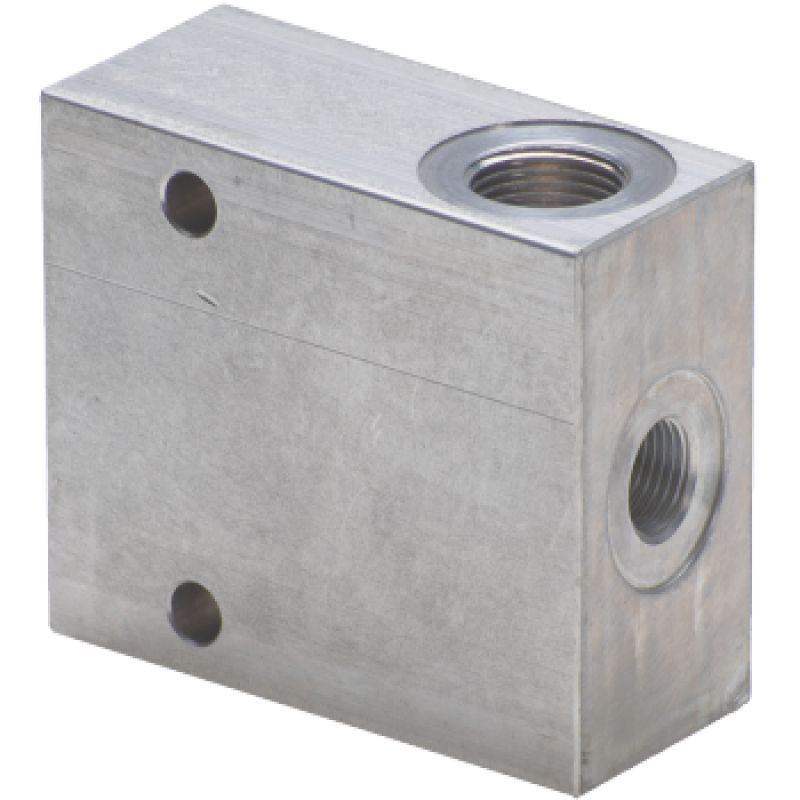

Cartridge valve manifold block

Block 3 ways 3/8 valve CVE304C
Model: CVE304C
  • Model:
    CVE304C
Cartridge thread3/4" UNF
Max. pressure, bar230
Full specifications ↓ Technical catalog · PDF

Description

Technical overview

The CVE304C is a cartridge valve manifold block. The following specifications are matched to the exact model row in the official DICSA catalogue.

Verified catalogue specifications

Component type
Cartridge valve manifold block
Compatible valve code
VECO08
Cartridge thread
3/4" UNF
Cartridge size
8

Technical documentation

Official technical documentation (PDF).

Source notes

  • This is a manifold block, not a complete solenoid valve. The valve-thread field is distinct from the external hydraulic port thread.

Technical documentation publisher: DICSA.

Specifications retain their original catalog reference. The product-card technical sheet is provided for comparison.

Full specifications

Technical specifications
Component type Cartridge valve manifold block
Cartridge thread 3/4" UNF
Compatible valve code VECO08
Cartridge size 8
Original specifications — unverified
Max. pressure, bar 230

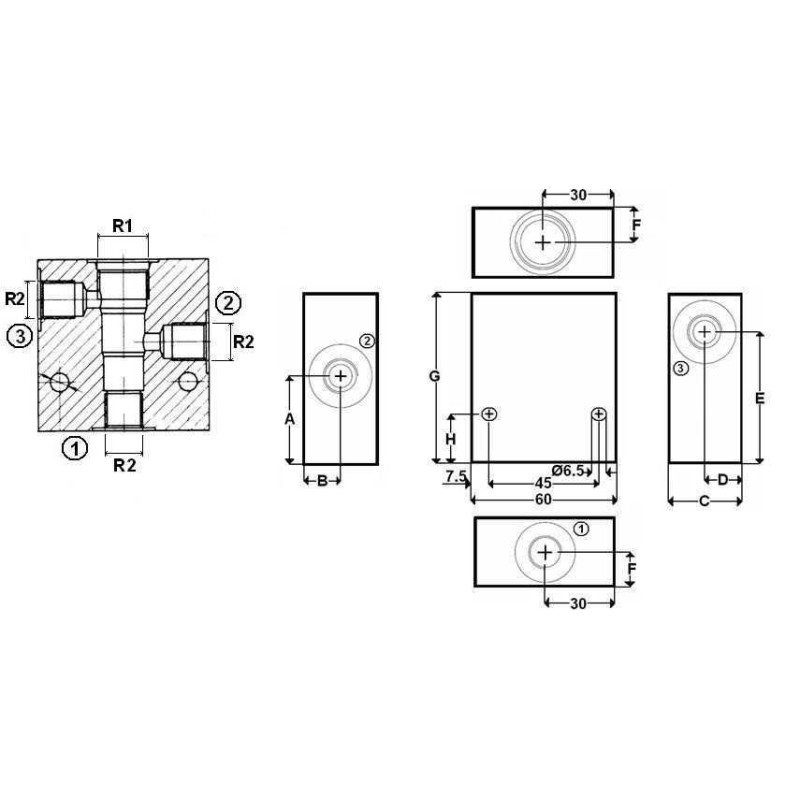

R1 3/4'' UNF
R2 3/8'' BSP
B 17,5
H 21
F 17,5
G 65
D 17,5
C 35
E 50
A 35,5
