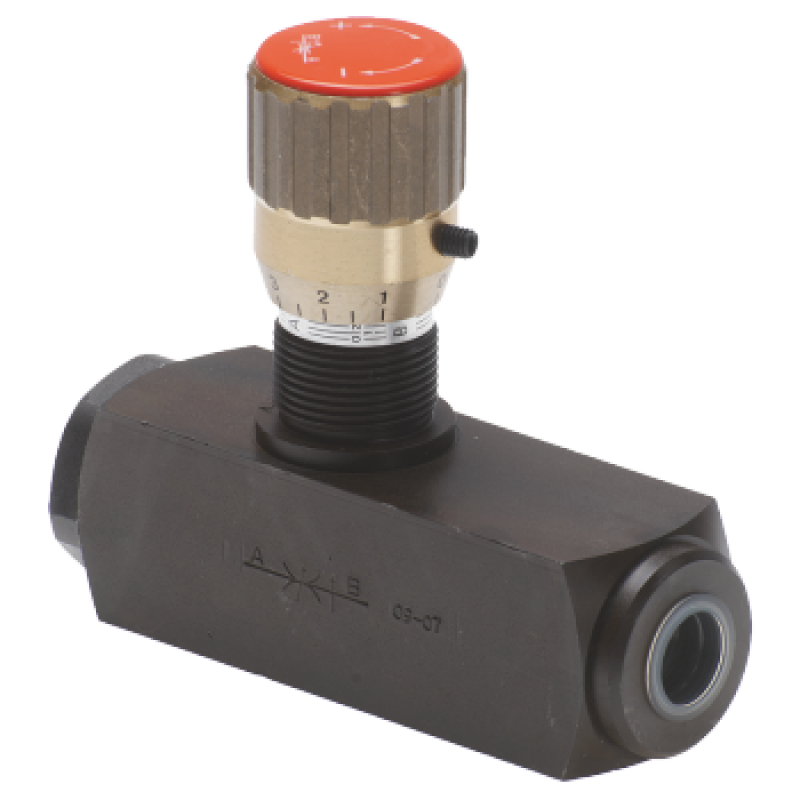

Bidirectional pressure compensated flow restrictor valve in line FT270204
Model: FT270204
Maximum pressure (bar)250
Port 1 thread1/4" BSP
Bidirectional pressure compensated flow restrictor valve in line FT270204. The valve routes fluid through the circuit. Match its actuation and port arrangement to the application.
Model specifications: Maximum pressure (bar): 250.
Bidirectional pressure compensated flow restrictor valve in line. The exact model is listed on page 1.
| Technical specifications | |
| Component type | Valve |
| Maximum pressure (bar) | 250 |
| Port 1 thread | 1/4" BSP |
| Equipment family | Flow control valves |
| Original specifications - unverified | |
| Max. pressure, bar | 250 |
| Flow max, l/min | 22 |
| R1 | 1/4'' BSP |
| R2 | M20x1 |
| Filtration degree | 25 |
| B | 12,5 |
| C | 94 |
| D | 81,5 |
| E | 88,5 |
| G | 15 |
| ØA | Ø27 |
