Valve

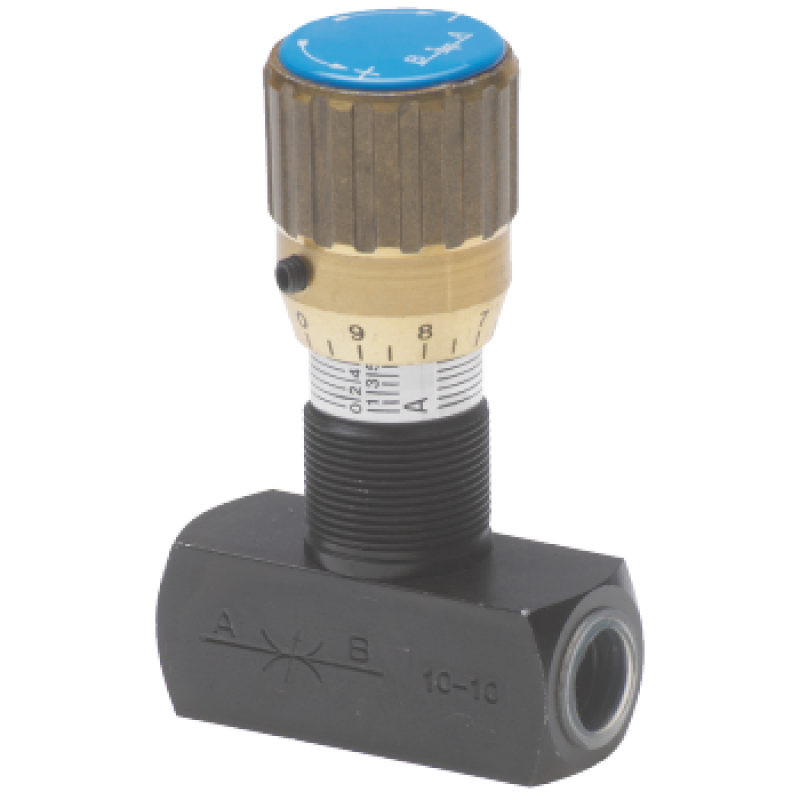

Bidirectional flow restrictor valve in line FT2572B12
Model: FT2572B12
Maximum pressure (bar)400
Port 1 thread3/4" BSP
Bidirectional flow restrictor valve in line FT2572B12. The valve routes fluid through the circuit. Match its actuation and port arrangement to the application.
Model specifications: Maximum pressure (bar): 400.
Bidirectional flow restrictor valve in line. The exact model is listed on page 1.
| Technical specifications | |
| Component type | Valve |
| Maximum pressure (bar) | 400 |
| Port 1 thread | 3/4" BSP |
| Equipment family | Flow control valves |
| Original specifications - unverified | |
| Burst pressure, bar | 1.6 |
| Max. pressure, bar | 400 |
| Flow max, l/min | 80 |
| R1 | 3/4'' BSP |
| R2 | M40X1,5 |
| Filtration degree | 25 |
| B | 17 |
| C | 86 |
| D | 120,5 |
| E | 132,5 |
| G | 26,5 |
| ØA | Ø47 |
| ØB | Ø100 |
