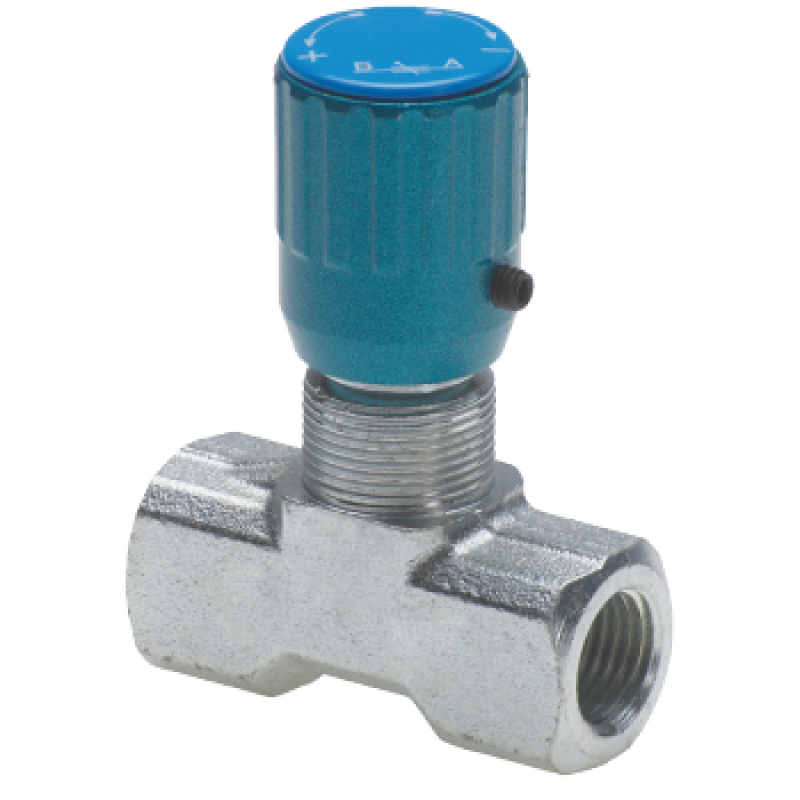

Bidirectional flow restrictor valve FT251B04
Model: FT251B04
Maximum pressure (bar)350
Port 1 thread1/4" BSP
Bidirectional flow restrictor valve FT251B04. The valve routes fluid through the circuit. Match its actuation and port arrangement to the application.
Model specifications: Maximum pressure (bar): 350.
Bidirectional flow restrictor valve. The exact model is listed on page 1.
| Technical specifications | |
| Component type | Valve |
| Maximum pressure (bar) | 350 |
| Port 1 thread | 1/4" BSP |
| Equipment family | Flow control valves |
| Original specifications - unverified | |
| Max. pressure, bar | 350 |
| Flow max, l/min | 12 |
| R1 | 1/4'' BSP |
| R2 | M17x1 |
| Filtration degree | 25 |
| B | 12 |
| C | 46 |
| D | 57 |
| E | 4,5 |
| G | 11,5 |
| L | 11,5 |
| ØA | Ø22 |
| ØB | Ø40 |
