Valve

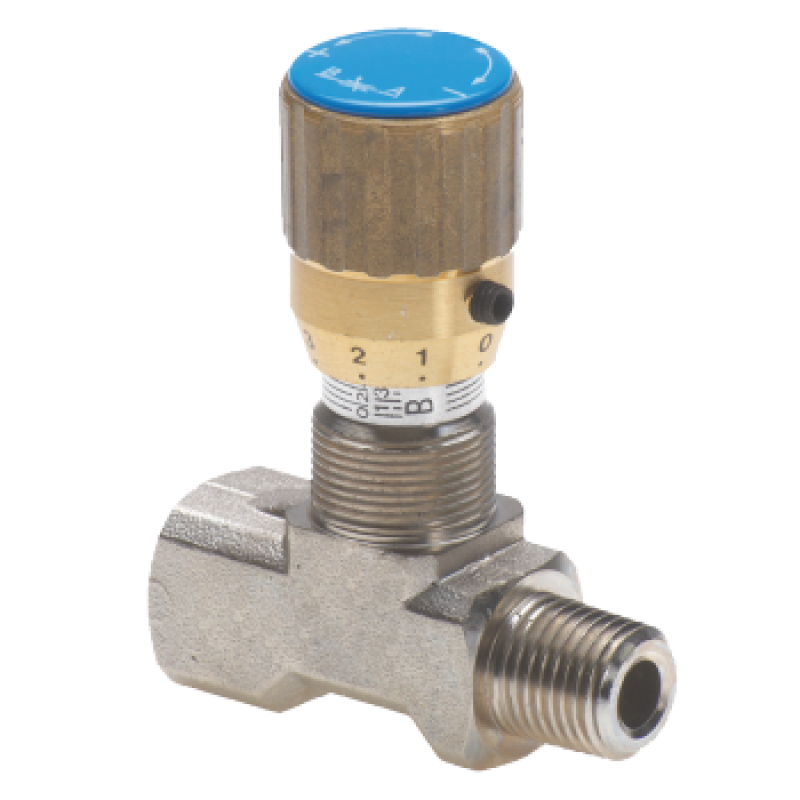

Bidirectional flow restrictor valve 210 bar M-F Chromed FT1251B0206
Model: FT1251B0206
Maximum pressure (bar)210
Port 1 thread3/8" BSP
Bidirectional flow restrictor valve 210 bar M-F Chromed FT1251B0206. The valve routes fluid through the circuit. Match its actuation and port arrangement to the application.
Model specifications: Maximum pressure (bar): 210.
Bidirectional flow restrictor valve 210 bar M-F Chromed. The exact model is listed on page 1.
| Technical specifications | |
| Component type | Valve |
| Maximum pressure (bar) | 210 |
| Port 1 thread | 3/8" BSP |
| Port 2 thread | 3/8" BSP |
| Equipment family | Flow control valves |
| Original specifications - unverified | |
| Max. pressure, bar | 210 |
| Flow max, l/min | 30 |
| R1 | 3/8'' BSP |
| R2 | M20X1 |
| Filtration degree | 25 |
| B | 13 |
| D | 27,5 |
| E | 32,5 |
| F | 69 |
| G | 7 |
| I | 12,5 |
| L | 15 |
| R3 | 3/8'' BS |
| ØA | Ø27 |
| ØB | Ø50 |
