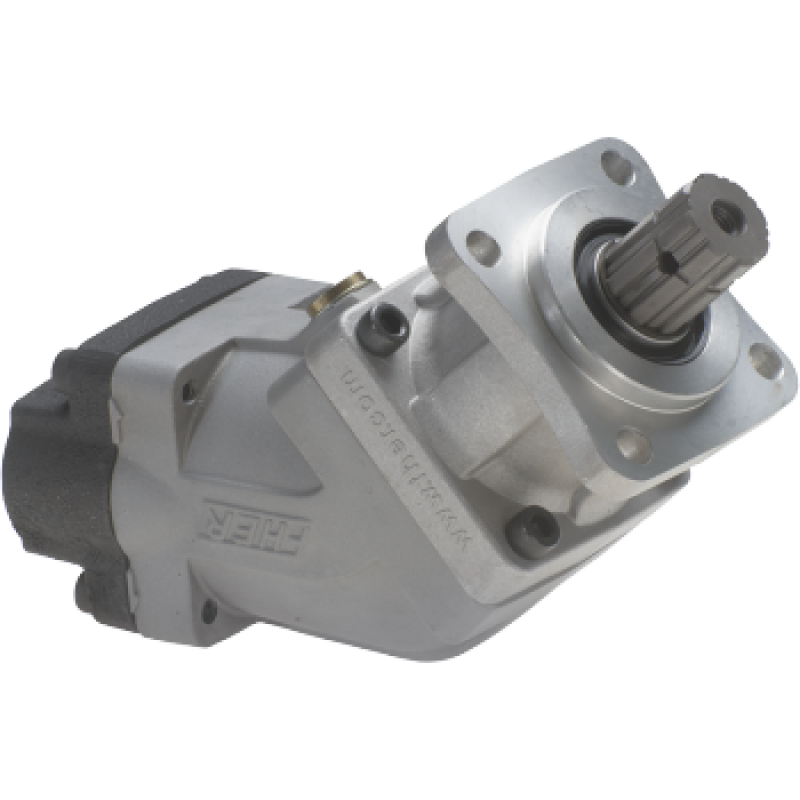

Hydraulic component
Bent axis piston pumps, power take off BPCF-110
Model: BPCF-110
Bent axis piston pumps, power take off BPCF-110. The pump supplies fluid flow to a hydraulic circuit. Select its drive and connection arrangement from the exact model documentation.
Bent axis piston pumps, power take off. Archived DICSA technical sheet from the 2023 source import. The exact model is listed on page 1. Specifications describe that catalogue revision.
| Technical specifications | |
| Component type | Hydraulic component |
| Equipment family | Piston pumps |
| Original specifications - unverified | |
| Max. pressure, bar | 300 |
| Max.Peak pressure | 350 |
| Working pressure, bar | 300 |
| FLOW(cm3) | 113CC |
| Rotationspeed, rpm | 1500 |
| R1 | 1''1/4 BSP |
| R2 | 1'' BSP |
