H3210610-101000 is an ALFAGOMMA stainless steel BSP male flat-seat hose insert, factory item code 1253553. The H3210610 family has a 5/8" BSP male connection with a flat seat seat. This catalogue position is intended for a hose with an inside diameter of 16.0 mm (5/8"; hose size and connection thread are separate selection dimensions.
The ordering row specifies dimension C as 34.1 mm and hexagon CH as 30.0 mm. Match the insert to the manufacturer's compatible hose, ferrule and assembly specification.

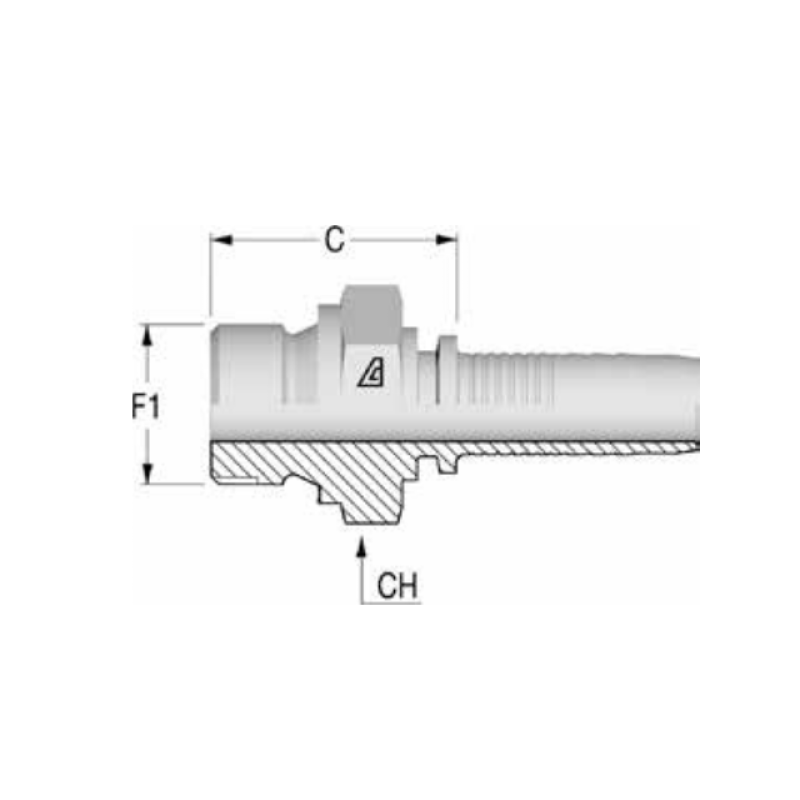

Illustration: representative H3210610 family technical drawing; size may vary.
