H3210510-161600 is an ALFAGOMMA stainless steel BSP male 60° flare hose insert, factory item code 1240146. The H3210510 family has a 1" BSP male connection with a 60 degree flare seat. This catalogue position is intended for a hose with an inside diameter of 25.0 mm (1"; hose size and connection thread are separate selection dimensions.
The ordering row specifies dimension C as 43.4 mm and hexagon CH as 41.0 mm. Match the insert to the manufacturer's compatible hose, ferrule and assembly specification.

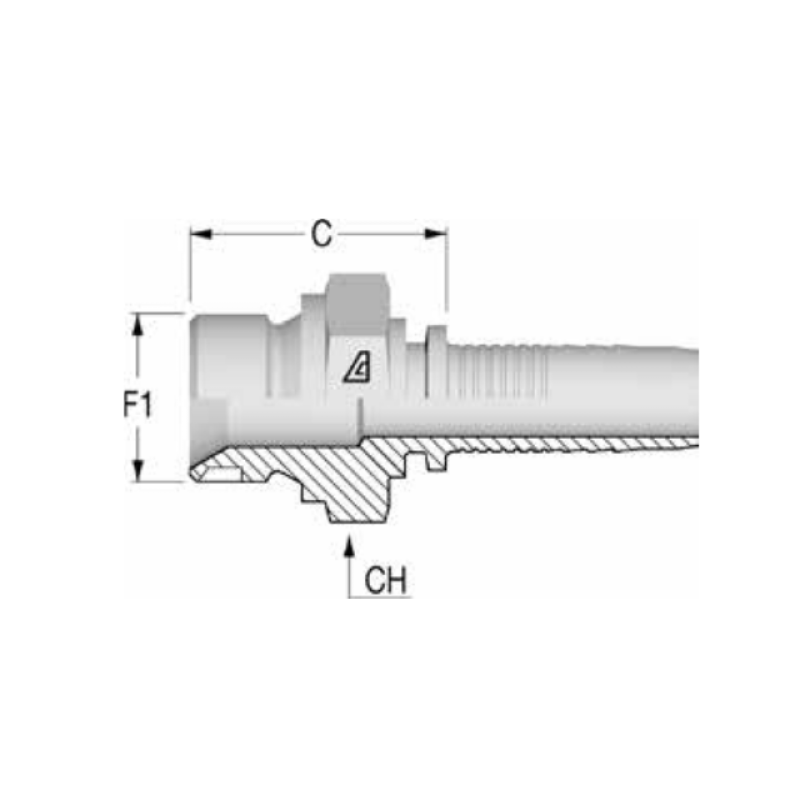

Illustration: representative H3210510 family technical drawing; size may vary.
