H1210510-080600 is an ALFAGOMMA BSP male 60° flare hose insert, factory item code 1200386. The H1210510 family has a 3/8" BSP male connection with a 60 degree flare seat. This catalogue position is intended for a hose with an inside diameter of 13.0 mm (1/2"; hose size and connection thread are separate selection dimensions.
The ordering row specifies dimension C as 28.6 mm and hexagon CH as 22.0 mm. Match the insert to the manufacturer's compatible hose, ferrule and assembly specification.

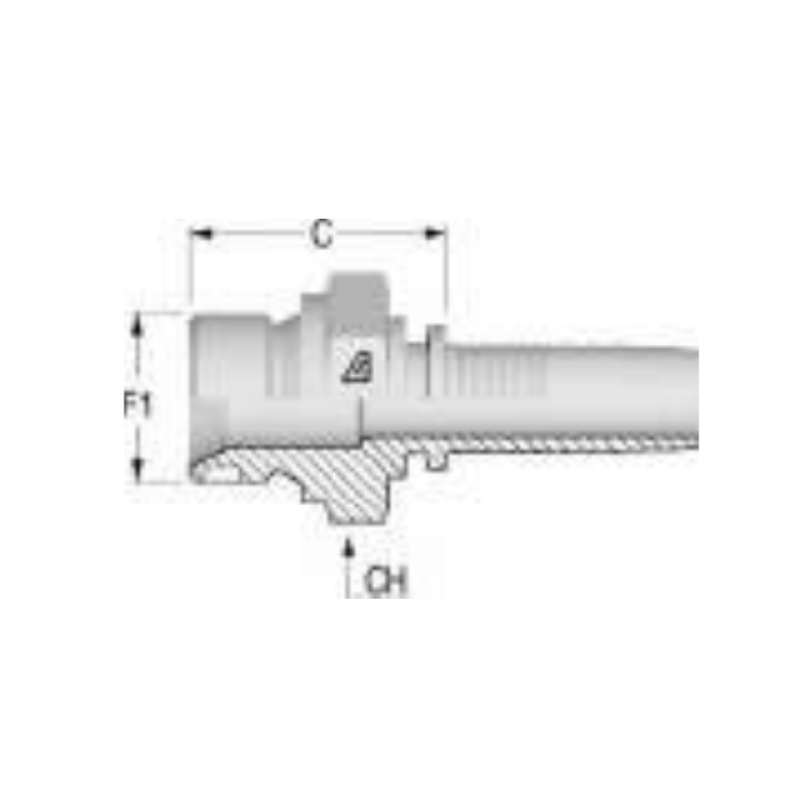

Illustration: representative H1210510 family technical drawing; size may vary.
