The AKG C-12 is a published C-series aluminium bar-and-plate oil-to-air heat exchanger core for hydraulic, transmission and lubrication circuits. It transfers heat to an externally supplied air stream and is suitable for face mounting on engine packages.
The catalogue lists this model directly in its dimensional table. The core does not define a powered fan package. Optional pressure bypasses, NPT adapters and coatings are separate executions and are not included in this designation. Cooling performance must be selected from the manufacturer curves using oil flow, viscosity, air velocity and entering temperature difference; the model number is not a fixed kW rating.

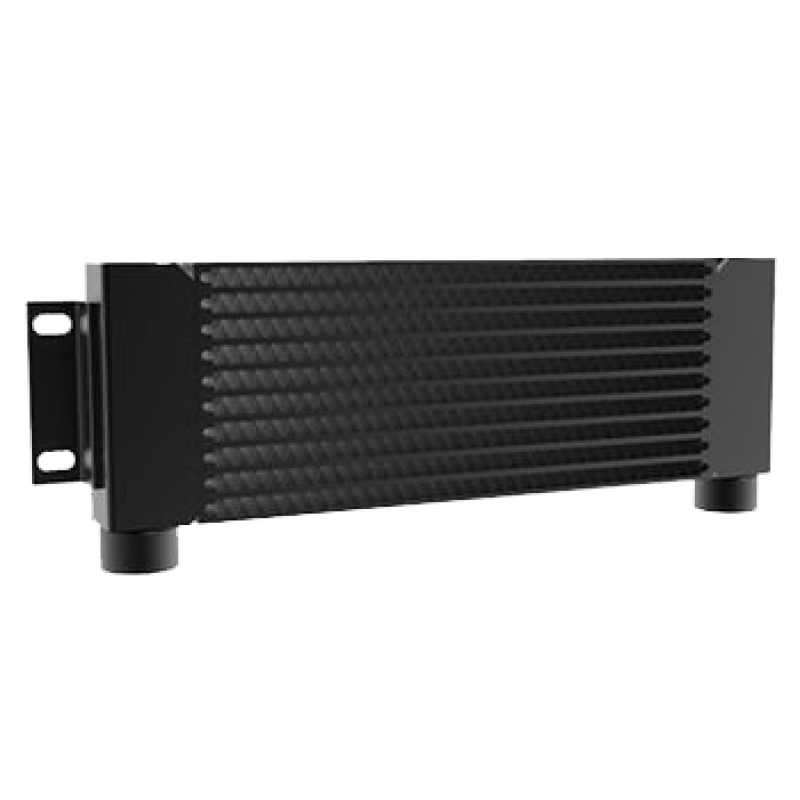

Dimensions A, B and C refer to the identified manufacturer drawing. The illustration represents the C series. The catalogue states 17 bar in its metric overview and 250 psi in its specification box; the lower stated metric limit is retained.
