Flow control valve VRCCL 38 (30 l/min, 3/8'' BSP, 3 ways, compensated)
Click image to enlarge

Flow control valve VRCCL 38 (30 l/min, 3/8'' BSP, 3 ways, compensated)
Model: VRCCL 38
  • Model:
    VRCCL 38
Maximum pressure (bar)200
Maximum flow (L/min)30
Valve functionThree-way pressure-compensated flow control valve with pressure relief
Port connection3/8" BSP
Full specifications ↓ Technical catalog · PDF

Description

The VRCCL 38 is a three-way pressure-compensated flow control valve with pressure relief. The official exact-model entry lists maximum flow 30 L/min, maximum pressure 200 bar.

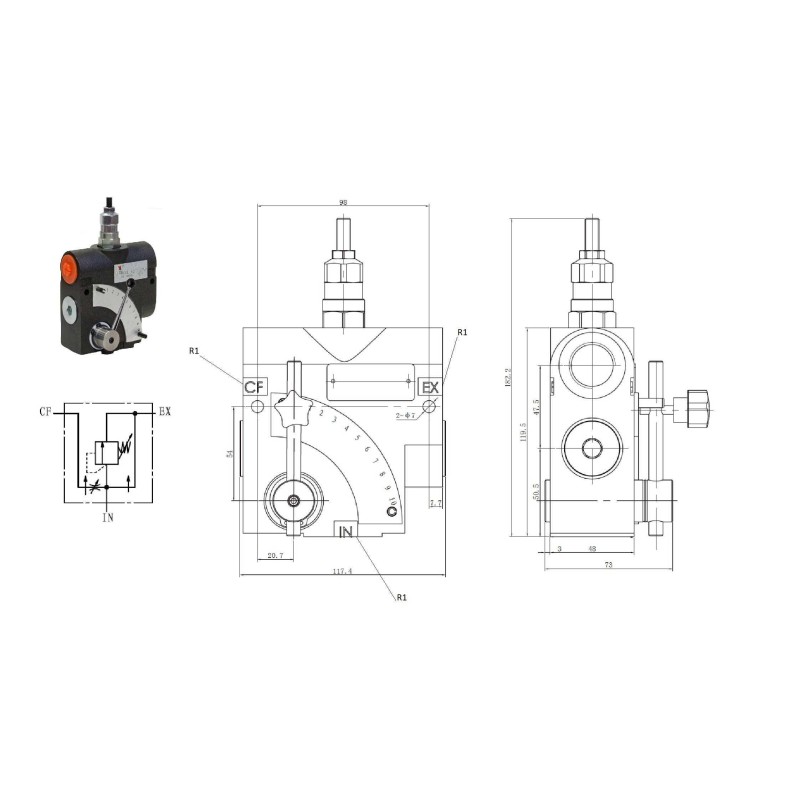

Documentation: DICSA. Official technical reference (PDF), page 1. Check the applicable product revision, hydraulic symbol and port arrangement before selection.

Full specifications

Technical specifications
Maximum pressure (bar) 200
Maximum flow (L/min) 30
Regulated flow range (L/min) 0–30
Regulated flow minimum (L/min) 0
Regulated flow maximum (L/min) 30
Port connection 3/8" BSP
Secondary port connection M27x2
Valve function Three-way pressure-compensated flow control valve with pressure relief
Original specifications — unverified
Max. reg. flow, l/min 0-30
