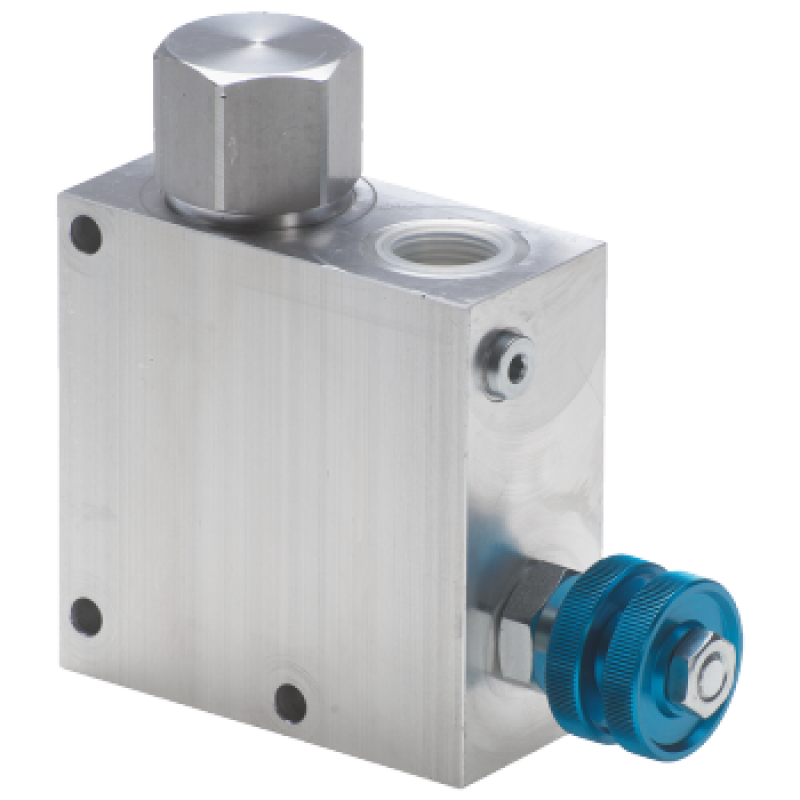

Flow control valve VT015012 (150 l/min, 3/4'' BSP, 3 ways, compensated)
Click image to enlarge

Flow control valve VT015012 (150 l/min, 3/4'' BSP, 3 ways, compensated)
Model: VT015012
  • Model:
    VT015012
Maximum pressure (bar)250
Maximum flow (L/min)150
Valve functionThree-way pressure-compensated flow control valve with excess flow to tank
Port connection3/4" BSP
Full specifications ↓ Technical catalog · PDF

Description

The VT015012 is a three-way pressure-compensated flow control valve with excess flow to tank. The official exact-model entry lists maximum flow 150 L/min, maximum pressure 250 bar.

Documentation: DICSA. Official technical reference (PDF), page 1. Check the applicable product revision, hydraulic symbol and port arrangement before selection.

Full specifications

Technical specifications
Maximum pressure (bar) 250
Maximum flow (L/min) 150
Maximum regulated flow (L/min) 90
Port connection 3/4" BSP
Valve function Three-way pressure-compensated flow control valve with excess flow to tank

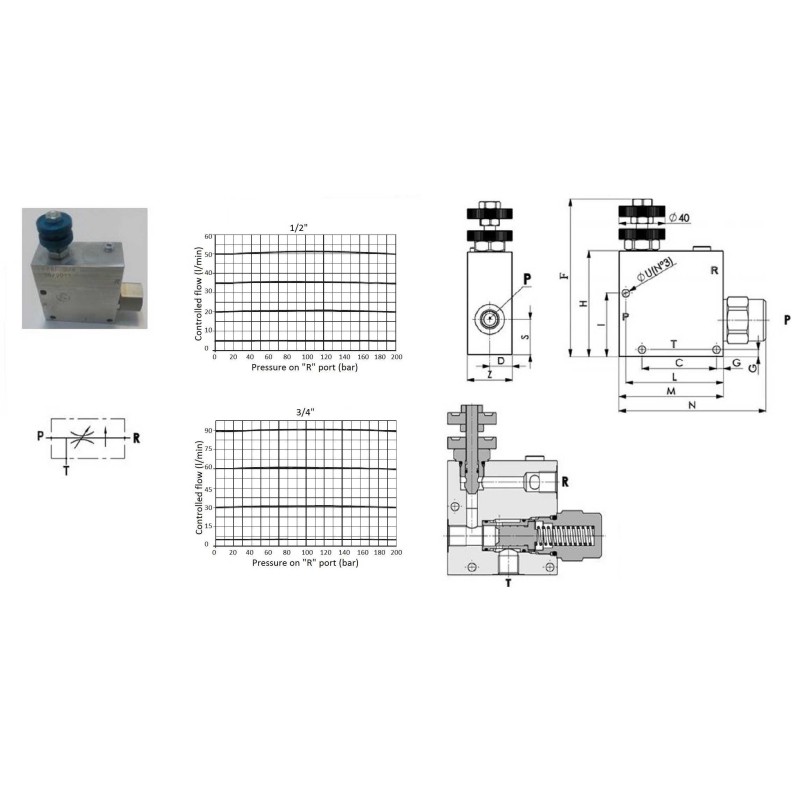

Original specifications — unverified
Max. reg. flow, l/min 90
L 94
H 110
F 155,5
G 8
I 63,5
D 25
S 35
M 110
N 144,7
C 88
Z 50
