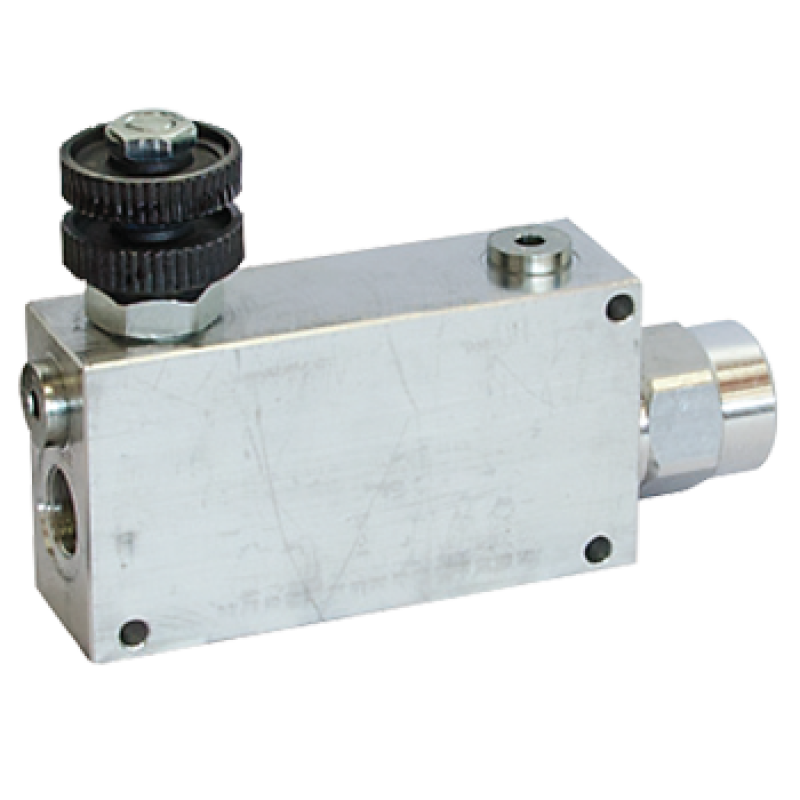

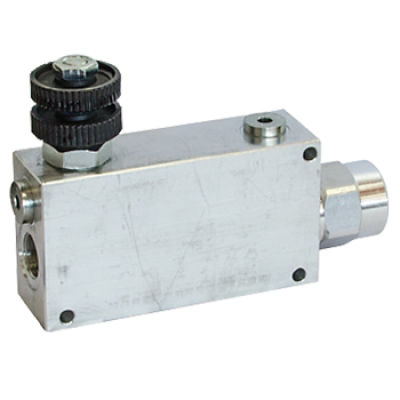

Flow control valve VRF38 (50 l/min, 3/8'' BSP, 3 ways, compensated)
Click image to enlarge

Flow control valve VRF38 (50 l/min, 3/8'' BSP, 3 ways, compensated)
Model: VRF38
  • Model:
    VRF38
Maximum pressure (bar)250
Maximum flow (L/min)50
Valve functionThree-way pressure-compensated flow control valve with usable excess flow
Port connection3/8" BSP
Full specifications ↓ Technical catalog · PDF

Description

The VRF38 is a three-way pressure-compensated flow control valve with usable excess flow. The official exact-model entry lists maximum flow 50 L/min, maximum pressure 250 bar.

Documentation: DICSA. Official technical reference (PDF), page 1. Check the applicable product revision, hydraulic symbol and port arrangement before selection.

Full specifications

Technical specifications
Maximum pressure (bar) 250
Maximum flow (L/min) 50
Maximum regulated flow (L/min) 30
Port connection 3/8" BSP
Valve function Three-way pressure-compensated flow control valve with usable excess flow
Original specifications — unverified
Max. reg. flow, l/min 30
K 110
H 130
F 113,7
G 114
I 171,3
D 40
S 58
